Views: 0 Author: Site Editor Publish Time: 2026-09-03 Origin: Site
An Electronic Cargo Tracking System (ECTS) can provide customs authorities with real-time information about cargo location, route compliance, electronic seal status, unauthorized opening, abnormal stops and other events during transit. However, deploying tracking devices and a monitoring platform is only one part of building an effective national ECTS.
The greater challenge is integration.
Customs authorities already operate within complex digital environments that may include customs management systems, National Single Window platforms, declaration systems, transit management systems, risk engines, port and terminal systems, inspection platforms and regional data exchange networks. If an ECTS operates separately from these systems, customs officers may gain another source of information, but they may also create another data silo.
A well-integrated ECTS should do something fundamentally different. It should connect physical cargo events with the digital records, authorization, risk processes and operational workflows that already exist within customs.
This means that a seal-opening event should not exist only as an IoT alert. It should be possible to determine which device generated the event, which container and shipment it belonged to, which customs declaration or transit movement was associated with it, where the cargo was at the time, whether the action was authorized and whether the event should influence a risk decision.
This is why ECTS integration should not be treated simply as an API development task. It is an architectural and operational challenge involving systems, identities, data models, workflows, security and cross-border interoperability.
This guide explains the key areas customs authorities and ECTS project teams should consider when integrating an Electronic Cargo Tracking System with an existing customs digital environment.
Traditional cargo tracking systems are often designed around the device. A GPS tracker sends coordinates to a platform, the platform displays the asset on a map, and alerts are generated when predefined conditions occur.
Customs supervision requires a broader model.
A customs officer is rarely interested in a GPS coordinate in isolation. The officer needs to understand which transit movement the coordinate belongs to, whether the vehicle is following an approved route, whether the cargo remains sealed, whether an inspection or opening was authorized, whether the shipment has entered or left a controlled area and whether the combination of events changes the shipment's risk profile.
That information may exist across several systems.
The ECTS may know the current device status and physical cargo events. The customs management system may hold declaration and transit information. A National Single Window may contain trade documents submitted by the trader. A risk management system may hold risk profiles and inspection rules. A port or terminal system may know whether the cargo has arrived at a controlled facility.
Integration allows these separate digital records to contribute to a more complete operational picture.
For this reason, the objective should not simply be to connect System A with System B. The objective is to create continuity between the physical cargo journey and the customs process supervising that journey.
There is no universal integration architecture because customs environments differ by country. However, a national ECTS may need to exchange information with several categories of systems.
A Customs Management System may provide declarations, transit references, vehicle information, cargo details, consignee or consignor information and customs procedure status. A National Single Window may provide documents and structured information submitted by traders and other government agencies. A Customs Risk Management System may use ECTS events as additional inputs when assessing whether a shipment requires intervention.
Depending on the operating environment, integration may also extend to transit management systems, port community systems, terminal operating systems, inspection systems, border management platforms, law-enforcement systems, payment or guarantee systems and regional customs platforms.

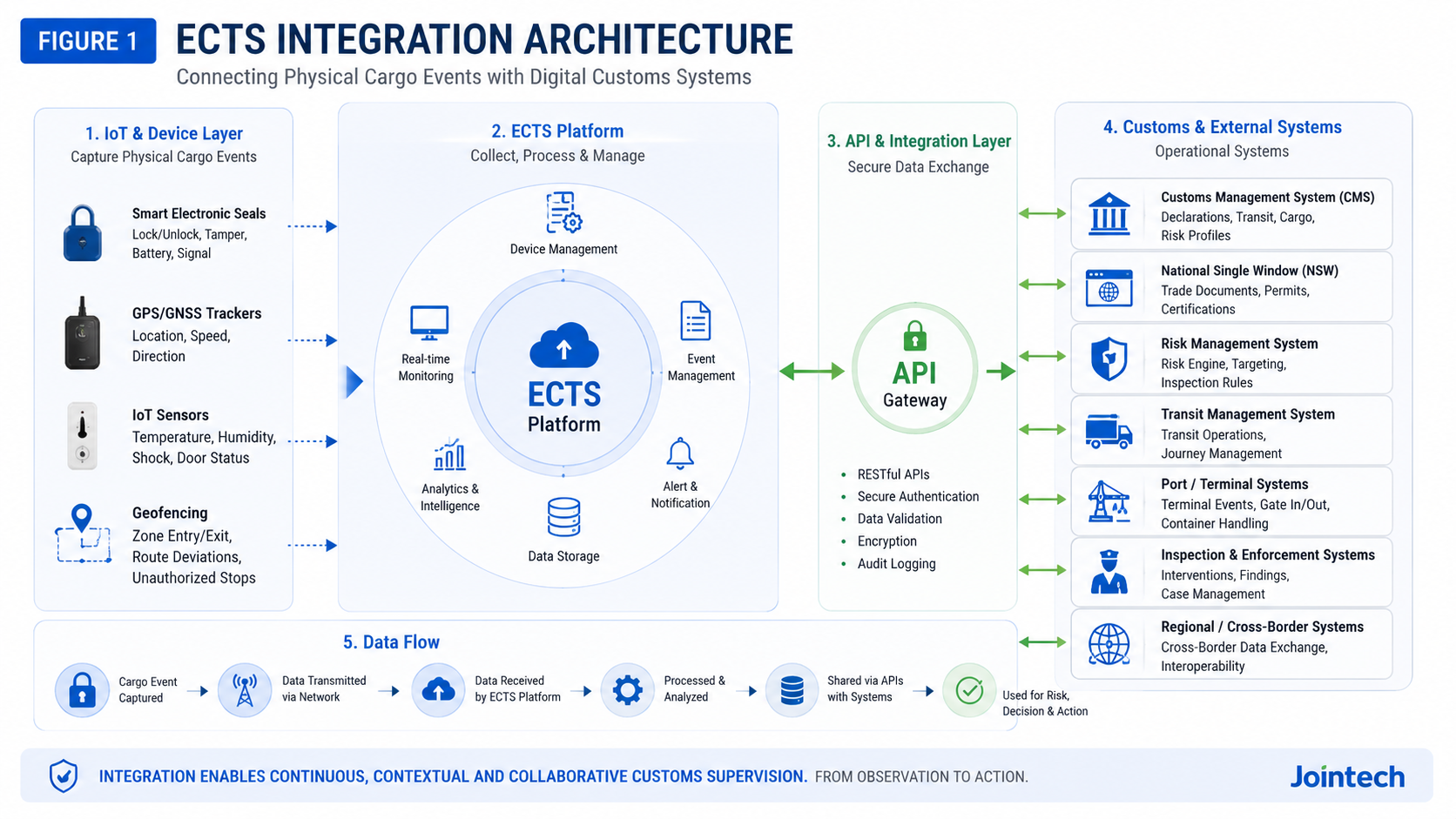

The architecture can be viewed conceptually as:
Smart Electronic Seals & IoT Devices → ECTS Platform → Customs Systems → Risk & Operational Workflows → Cross-Border / Regional Systems
The important point is that the ECTS should not become a parallel customs environment requiring officers to manually compare several screens to understand one shipment. Where technically and operationally appropriate, relevant information should flow between systems so that physical cargo events can be interpreted within the existing customs process.
One of the most common mistakes in system integration is beginning with a technical question:
Which API should we build?
A better starting point is:
Which customs process are we trying to connect?
Consider a transit movement. A shipment may first be declared in an existing customs system. An electronic seal is then assigned to the cargo, the device and declaration are bound to the same transit journey, and the ECTS begins monitoring the movement. During transit, the platform may detect route deviation, unauthorized opening, an abnormal stop or another risk event. At the destination, the cargo is verified, the seal is removed or authorized for opening, and the transit movement is closed.
Each step may involve information moving between systems.
Before designing interfaces, the project team should therefore map the complete workflow and identify which system is responsible for each record, event, authorization and decision.
This helps answer several important questions. Which system creates the transit journey? Which system is the authoritative source for declaration data? Where is the device-to-cargo association created? Which system authorizes unlocking? Where should ECTS alerts appear? Which system records the final intervention? What happens if one system is temporarily unavailable?
API architecture should emerge from these operational requirements rather than the other way around.
One of the most underestimated challenges in ECTS integration is identity.
A single customs transit movement can involve multiple identifiers: an electronic seal ID, IoT device ID, container number, vehicle registration, trailer ID, shipment reference, customs declaration number, transit reference and journey or task ID.
These identifiers describe related entities, but they are not interchangeable.
For example:
Device ID ≠ Container ID ≠ Vehicle ID ≠ Shipment ID ≠ Customs Declaration ID
A smart electronic seal may be assigned to one container for one journey and then reused on another container. A truck may carry different shipments over time. A container may move between transport modes. Multiple sensors may also be associated with the same cargo.
For reliable integration, the system must preserve these relationships and the time periods during which they are valid.
A simplified relationship might look like:
Electronic Seal A → Container B → Vehicle C → Transit Declaration D → Journey E
If Device A is reassigned after Journey E is completed, the historical relationship should remain intact. Otherwise, an event retrieved later could be incorrectly associated with the device's current assignment rather than the cargo it was monitoring when the event occurred.
This is particularly important for investigations, customs audits, cargo risk analysis and long-term data analytics.
Identity mapping therefore needs to be treated as a core integration requirement rather than a database housekeeping task.
APIs provide the technical mechanism through which an ECTS and customs systems can exchange information. However, effective ECTS API integration requires more than simply making data accessible.
The project team should first define what information needs to move, in which direction, under what conditions and with which system acting as the authoritative source.
For example, customs systems may send the ECTS information such as transit references, container numbers, vehicle details, approved routes, origin and destination locations, inspection requirements and authorized journey status.
The ECTS may return physical-world information including device assignment, GPS/GNSS position, seal status, geofence events, route deviations, unauthorized opening events, device tampering, abnormal stops, battery or connectivity status and journey completion information.
An integration flow might therefore operate as:
Customs Declaration → Transit Task → Device Assignment → ECTS Monitoring → Cargo Event → API Exchange → Customs Risk Assessment → Operational Response
APIs should also support status synchronization and error handling. If a customs system updates an approved route, for example, the ECTS needs a mechanism to receive and apply the change. If an API call fails, the system should know whether the data needs to be retried, queued or manually reviewed.
The objective is not simply real-time connectivity. It is reliable operational continuity.

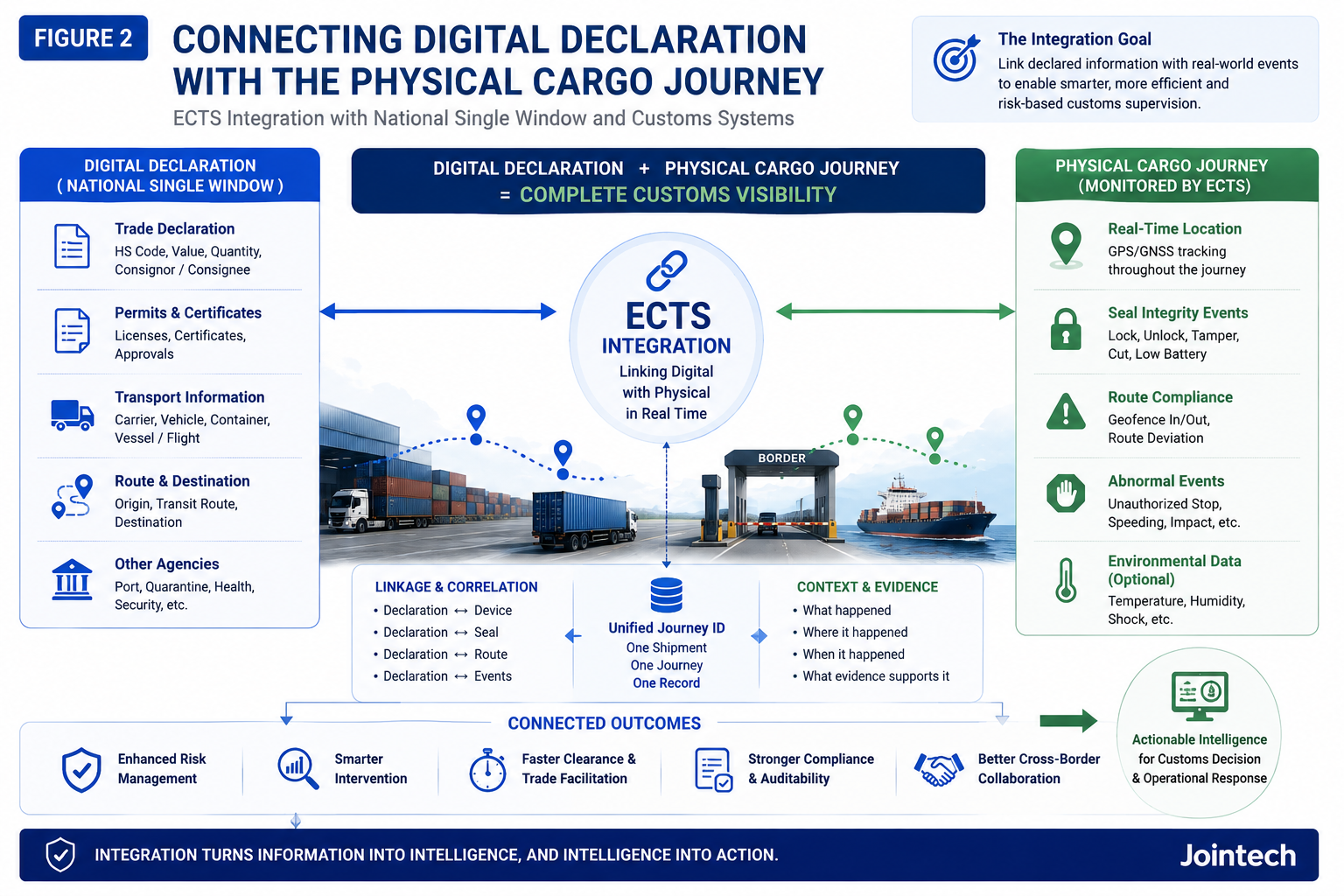

A National Single Window allows traders and other participants to submit trade-related information through a coordinated digital environment rather than repeatedly providing the same information to multiple agencies.
ECTS introduces another dimension: information generated by the physical cargo journey itself.
This creates an important opportunity to connect declared information with physical-world cargo events.
For example, a customs declaration may describe the shipment, route, vehicle and destination. Once the journey begins, the ECTS can provide information about where the cargo actually travels, whether the electronic seal remains intact, whether the vehicle follows the authorized route and whether unexpected events occur.
The integration concept can therefore be understood as:
Digital Declaration + Physical Cargo Journey = More Complete Customs Visibility
This does not mean every IoT event should automatically be written into the Single Window. Integration architecture should be designed according to national governance, data ownership, security and operational requirements.
The important principle is that ECTS should complement existing customs digitalization rather than create a disconnected data environment alongside it.

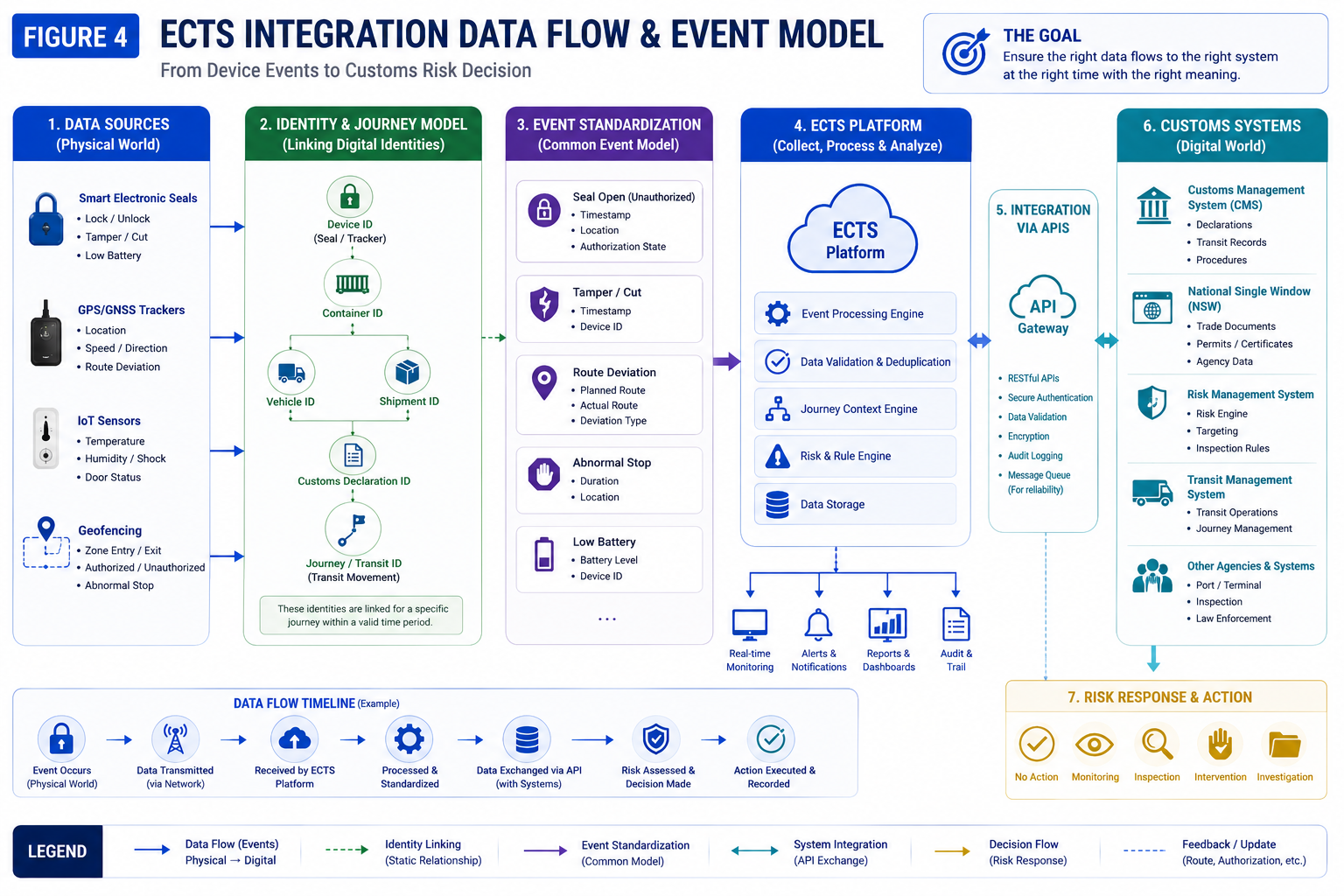

Interoperability is not achieved simply because two systems can transmit JSON, XML or another technical data format.
The receiving system must also understand what the data means.
Different devices or technology providers may describe similar events differently. One platform may use “Seal Open,” another “Unlock Event,” another “Door Open,” while another may distinguish between authorized and unauthorized opening at the device level.
A national ECTS therefore benefits from a standardized event model.
Typical event categories may include authorized locking and unlocking, unauthorized seal opening, tampering, route deviation, geofence entry and exit, abnormal stops, device offline status, low battery conditions, sensor anomalies and journey start or completion.
For each important event, the data model should define relevant attributes such as event type, timestamp, device identity, associated cargo or journey, location, source, authorization state and processing status.
This creates semantic interoperability.
Technical interoperability answers:
Can System A send data to System B?
Semantic interoperability answers:
Will System B understand the event in the same way System A intended it?
For national and cross-border ECTS projects, the second question is often more important.
Not every ECTS event should trigger the same operational response.
A route deviation may indicate risk, but it may also result from road construction, traffic control or an authorized route adjustment. An electronic seal opening may indicate unauthorized cargo access, but the same event inside an approved inspection zone with valid authorization may represent normal customs activity.
This is where ECTS integration with customs risk management becomes particularly valuable.
Instead of treating individual IoT alerts as isolated incidents, the risk environment can consider multiple dimensions of information together. A route deviation combined with an unauthorized stop, a seal-opening event and the absence of an authorization record may justify a different response from a route deviation occurring alone.
The goal should therefore be to move from alert generation toward contextual risk assessment.
This does not mean that the ECTS should automatically make every customs decision. Different authorities will maintain different decision rules, legal responsibilities and levels of automation. The role of integration is to ensure that relevant physical cargo events can become reliable inputs to the appropriate customs risk and operational processes.
A mature architecture should also preserve the distinction between the original observation, the system's interpretation, the risk decision and the resulting action. This makes later review and audit significantly more meaningful.
Cross-border cargo does not always travel through environments with continuous network coverage.
Vehicles may pass through remote areas, mountains, tunnels, border zones or regions where mobile connectivity is inconsistent. External customs systems may also experience maintenance windows, latency or temporary outages.
ECTS integration should therefore not assume that every event will be exchanged instantly.
Devices and platforms may require mechanisms for local event storage, delayed transmission, timestamp preservation, retry logic and synchronization after connectivity is restored. The receiving system should also be able to distinguish between the time an event occurred and the time it was received.
This distinction can be important for risk interpretation.
For example, an electronic seal event may have occurred at 14:32 but reached the central platform at 14:47 because connectivity was unavailable. If the system treats 14:47 as the event time, the reconstructed cargo journey may be misleading.
A resilient ECTS integration architecture therefore needs to be designed for the realities of physical transport, not only ideal network conditions.

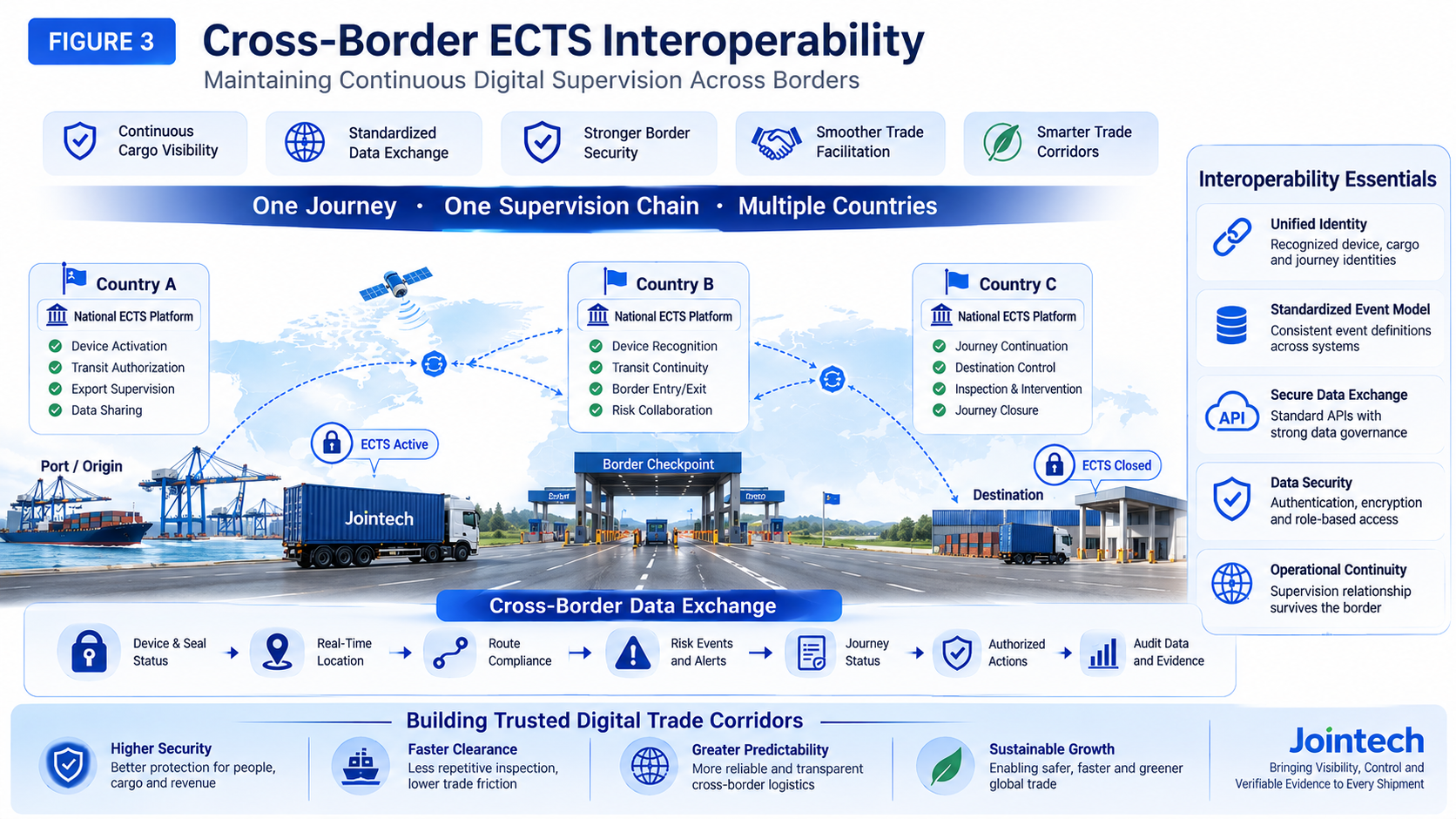

The integration challenge becomes more complex when cargo crosses national borders.
A shipment may begin under the supervision of Customs Authority A, cross into Country B and continue toward Country C. Each country may operate different customs platforms, legal frameworks, device ecosystems and data governance requirements.
If every border crossing breaks the digital supervision chain, much of the value of end-to-end cargo visibility is lost.
Cross-border ECTS interoperability therefore requires several layers of coordination. Participating authorities need to determine which identifiers are recognized, which events can be exchanged, which data formats and interfaces are supported, how device authenticity is verified, how access rights are managed and which authority is responsible for specific stages of the journey.
Data sovereignty is equally important. Cross-border interoperability does not necessarily mean that every participating country must share every piece of cargo data. A well-designed architecture should allow authorities to define which information is exchanged, with whom, for what purpose and under which governance rules.
The long-term objective is not simply cross-border tracking. It is continuity of trusted digital supervision across the trade corridor.
This is one reason ECTS is increasingly relevant to broader discussions about smart borders and digital trade corridors. Cargo may cross a physical border in seconds, but the digital relationships surrounding the journey should not disappear at the same moment.
Integration increases the value of an ECTS, but it also expands the number of systems, interfaces and users interacting with sensitive cargo and customs information.
Security therefore cannot be added after integration is completed.
ECTS integration architecture should consider secure authentication, encrypted communication, API access control, role-based permissions, device identity, audit logging, credential management and protection against unauthorized data modification.
Data governance is equally important. Project teams should define which system owns specific records, how long information is retained, who can access historical cargo events, how corrections are handled and how sensitive information is shared between agencies or countries.
This is particularly important when operational decisions depend on data coming from several systems.
If an alert is generated from a combination of electronic seal status, customs declaration information and geofence data, the organization should ideally be able to reconstruct which information was available at the time and where it originated.
That traceability strengthens both operational trust and accountability.
Several integration problems appear repeatedly in large digital infrastructure projects.
The first is treating ECTS as a standalone tracking platform. This may provide visibility, but it limits the ability to connect cargo events with existing customs workflows.
The second is connecting systems without solving identity mapping. APIs may exchange data successfully while the receiving platform cannot reliably determine which device, container, vehicle, declaration and journey belong together.
The third is achieving technical interoperability without semantic interoperability. Two platforms may exchange events but interpret those events differently.
The fourth is sending every IoT alert directly into customs workflows. Excessive low-value alerts can create operational noise rather than better risk management.
The fifth is designing only for perfect connectivity. Cross-border transport requires architecture that can handle offline devices, delayed events and temporary system outages.
The sixth is ignoring future interoperability. A national ECTS designed only around today's devices and domestic systems may become difficult to extend when new technology providers, neighboring customs authorities or regional platforms need to participate.
Finally, many projects focus heavily on technical connectivity while underestimating operational integration. A technically successful API does not guarantee that officers know who should respond to an alert, how authorization is verified or how an incident should be closed.
Successful integration must connect both systems and operations.
Before moving from integration design to deployment, customs authorities and project teams should be able to answer the following questions:
Integration Area | Key Question |
Business Workflow | Which customs processes will ECTS support or change? |
System Landscape | Which existing systems need to exchange information with the ECTS? |
System of Record | Which platform is authoritative for each major data element? |
Identity Mapping | How are devices, vehicles, containers, shipments and declarations linked? |
API Architecture | Which records and events must move between systems, and in which direction? |
Event Model | Are cargo and device events standardized across platforms? |
Single Window | How should physical cargo events relate to existing trade and declaration data? |
Risk Management | Which ECTS events should influence risk assessment or operational response? |
Offline Operations | What happens when devices, networks or external systems are unavailable? |
Cybersecurity | How are devices, APIs, users and sensitive cargo data protected? |
Auditability | Can important events, interpretations, decisions and actions be reconstructed? |
Cross-Border Interoperability | Can the architecture support future regional data exchange and device recognition? |
Scalability | Can the integration support national-scale device, journey and event volumes? |
This checklist should be adapted to national laws, customs procedures, infrastructure and operational requirements. Its purpose is not to prescribe one universal architecture, but to ensure that integration is considered as part of the overall ECTS design rather than as a final technical task.
The first generation of cargo tracking focused primarily on connecting devices to platforms.
The next generation needs to connect something more valuable: the relationships between physical cargo events and customs information.
A GPS coordinate becomes more useful when it is associated with an authorized transit route. A seal-opening event becomes more meaningful when it can be evaluated against location and authorization. A geofence event becomes operationally relevant when it corresponds to a border crossing, inspection facility or controlled destination. An AI-generated risk assessment becomes more trustworthy when its underlying observations and data sources remain traceable.
This is why integration is central to the future of ECTS.
The objective is not to build the largest possible data repository or connect every government system to every IoT event. It is to ensure that the right information can move between the right systems at the right moment, while preserving identity, context, security and operational meaning.
When this is achieved, an Electronic Cargo Tracking System becomes more than a tracking platform. It becomes part of a broader customs digital infrastructure capable of supporting continuous transit supervision, risk-based intervention, cross-border collaboration and more intelligent use of regulatory resources.
A successful Electronic Cargo Tracking System should not become another isolated technology layer inside Customs.
Its value increases when smart electronic seals, GPS/GNSS tracking, IoT sensors and physical cargo events can be connected with declarations, transit records, authorization, risk systems and operational workflows already used by customs authorities.
Achieving this requires more than APIs. It requires clear business workflows, reliable identity mapping, standardized event semantics, resilient data exchange, cybersecurity, data governance and a long-term approach to national and cross-border interoperability.
The central principle is simple:
ECTS integration is not about connecting systems for the sake of connectivity. It is about connecting physical cargo reality with digital customs supervision.
For governments planning the next stage of customs digital transformation, this distinction will become increasingly important. The future of ECTS will not be defined only by whether Customs can track cargo in real time, but by whether that real-time information can be securely and meaningfully connected to the systems where risk decisions, authorizations and regulatory actions actually happen.
ECTS integration is the process of connecting an Electronic Cargo Tracking System with existing customs and trade systems so that physical cargo events, device information, declarations, transit records, authorization and risk processes can exchange relevant data within a coordinated digital supervision environment.
Yes, where national architecture and governance permit it. Integration can help connect declaration and trade information with physical cargo journey data. The exact data exchanged and integration method should be determined by national customs procedures, system architecture, security requirements and data governance policies.
APIs enable structured data exchange between the ECTS and external systems. They can support information such as transit tasks, device assignments, cargo events, route status, seal status and journey completion. Effective API integration should also include authentication, error handling, synchronization and clear data ownership.
Because a device ID, container number, vehicle ID, shipment reference and customs declaration number represent different entities. ECTS integration must preserve the relationships between these identities so that physical events are associated with the correct cargo and journey.
ECTS interoperability is the ability of different devices, platforms or customs systems to exchange and correctly interpret relevant cargo supervision information. It includes both technical interoperability—being able to exchange data—and semantic interoperability—understanding the meaning of that data consistently.
ECTS can provide physical cargo events such as route deviations, unauthorized seal openings, abnormal stops and geofence events as additional inputs to customs risk processes. When these events are combined with declaration data, authorization and operational context, they can support more informed risk assessment and intervention.
ECTS architecture should account for intermittent connectivity through mechanisms such as local event storage, timestamp preservation, delayed transmission, retry logic and synchronization when connectivity returns. This helps preserve the sequence and integrity of cargo events even when continuous communication is unavailable.
Cross-border interoperability can help maintain digital supervision continuity as cargo moves between jurisdictions. It requires participating authorities to coordinate identity recognition, data exchange, event semantics, security, access rights and governance while respecting national data sovereignty.
