Views: 0 Author: Site Editor Publish Time: 2026-08-25 Origin: Site
Implementing an Electronic Cargo Tracking System (ECTS) requires decisions across system architecture, communications, software integration, control-center operations, risk management and field procedures. But one of the most consequential decisions happens at the physical edge of the system: selecting the electronic seals that will travel with the cargo.
A smart electronic seal is not simply a GPS tracker attached to a container, nor is it merely a digital replacement for a mechanical seal. Within a Customs ECTS, it becomes a field supervision node connecting the physical cargo journey with the digital monitoring environment.
It may be expected to verify whether cargo remains secured, report location and movement, detect unauthorized opening or tampering, communicate risk events, support authorized Customs operations and preserve records that can later help explain what happened during transit.
This creates an important implementation principle:
The quality of an ECTS depends partly on the quality of the data and events generated at the physical edge.
If field devices are unreliable, generate excessive false alerts, lose critical records during communication gaps or cannot operate consistently under real transit conditions, the problem does not remain at the device level. It propagates upward into monitoring, risk assessment and Customs decision-making.
For Customs authorities planning an ECTS project, smart electronic seal selection should therefore be treated as an operational and system-level decision, not simply as a hardware procurement exercise.
A smart electronic seal is an IoT-enabled cargo security device used to combine physical sealing with digital monitoring during Customs-controlled cargo movements.
Depending on the system design and device type, it may incorporate capabilities such as GPS/GNSS positioning, cellular communication, electronic locking or sealing, tamper detection, geofencing, event recording, remote authorization and integration with a centralized ECTS platform.
Different markets use different terminology for similar or overlapping technologies, including:
Smart Electronic Seal, Electronic Seal, E-Seal, GPS Electronic Seal, GPS Lock, Smart GPS Lock, Electronic Cargo Seal, and, in some regional regulatory environments, Electronic Navigation Seal or Navigation Seal.
These terms are not always technically interchangeable. A simple electronic seal may focus primarily on seal integrity, while a GPS-enabled electronic lock may combine physical locking, positioning, communications and remote control.
The important distinction for an ECTS implementation is not the label alone.
The real question is:
What physical events must Customs monitor, and what device capabilities are required to generate reliable evidence of those events?
The electronic seal should therefore be selected according to the supervision model, cargo type, vehicle or container configuration, transit environment and integration requirements of the overall ECTS.
A conventional GPS tracker is primarily designed to answer:
Where is the vehicle or asset?
That information is valuable, but Customs transit supervision often requires another layer of information:
Is the cargo still secured?
A smart electronic seal can connect location information with the physical security status of the cargo. Depending on the design, it can help determine whether the sealing mechanism has been opened, whether an abnormal security event has occurred and where that event took place.
This creates an important difference between asset visibility and cargo supervision.
A vehicle may remain on an approved route while the cargo compartment experiences an unauthorized opening. Conversely, a legitimate Customs inspection may require the cargo to be opened at an authorized location.
Location alone cannot fully explain either situation.
For this reason, Customs ECTS projects should evaluate whether the field device can connect location + seal status + event time + authorization + operational context.
Capability | Standard GPS Tracker | Smart Electronic Seal |
GPS/GNSS location | ✓ | ✓ |
Route monitoring | ✓ | ✓ |
Geofence monitoring | Often | ✓ |
Physical cargo sealing | — | ✓ |
Opening event detection | — | ✓ |
Tamper monitoring | Limited | ✓ |
Remote authorization | — | Depending on design |
Cargo security status | — | ✓ |
ECTS workflow integration | Limited | ✓ |
Customs transit supervision | Partial | Designed for this purpose |
The objective is not to suggest that one technology is universally better than another. The appropriate device depends on the supervision requirement.
For Customs-controlled cargo, however, knowing where cargo is and knowing whether cargo remains secure are two different requirements.

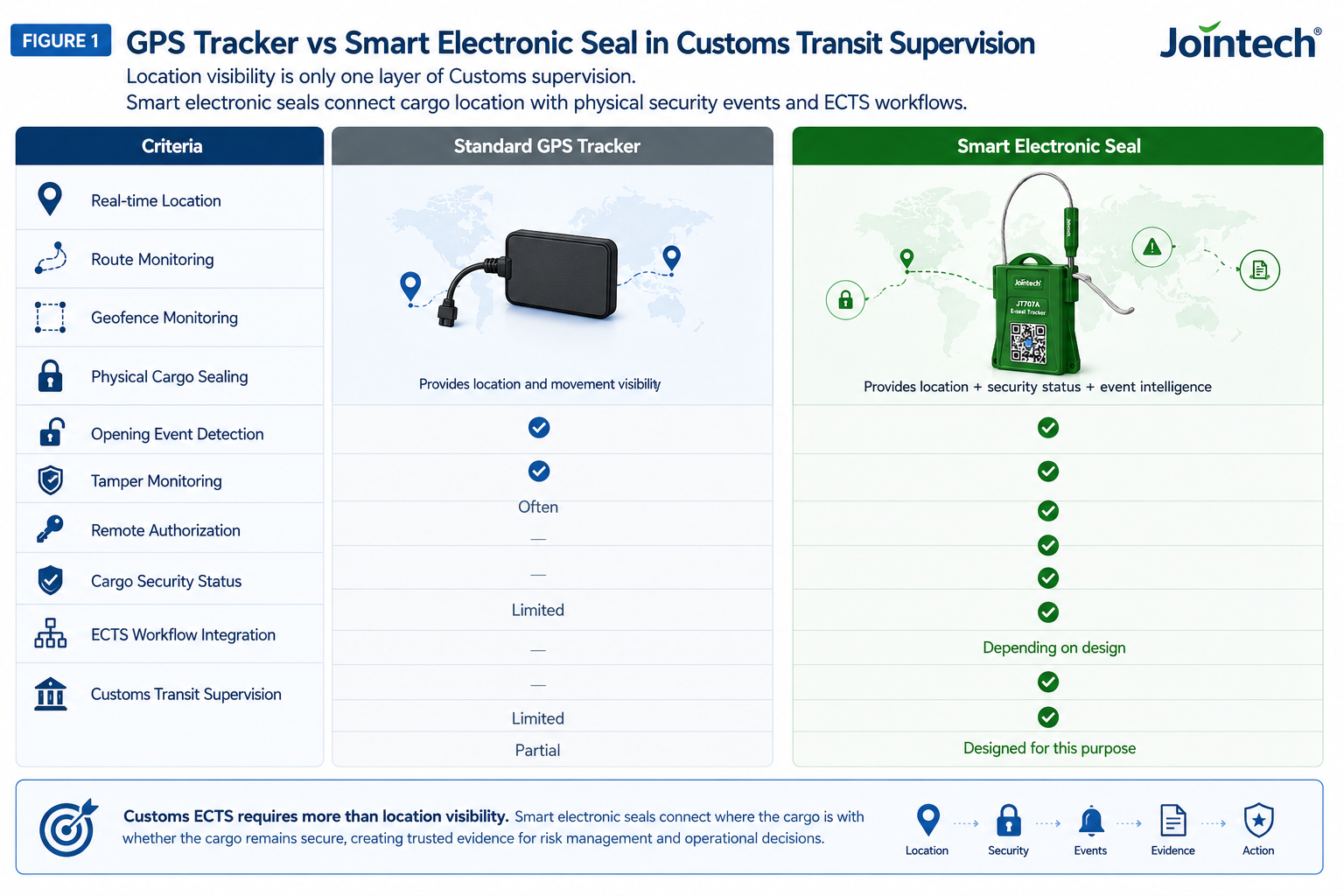

Figure 1. GPS Tracker vs Smart Electronic Seal in Customs Transit Supervision
Location visibility is only one layer of Customs supervision. Smart electronic seals connect cargo location with physical security events and ECTS workflows.
A common implementation mistake is to begin by comparing device specifications before defining the Customs supervision scenario.
The correct sequence should be reversed.
Customs should first identify what needs to be supervised, which risks need to be controlled, and what operational response should follow when an abnormal event occurs.
Different ECTS scenarios may include transit cargo moving from a seaport to an inland Customs facility, bonded cargo moving between controlled locations, cross-border road transit, containerized cargo, truck cargo, high-risk or sensitive goods, tanker movements or regional trade corridors.
Each scenario can create different device requirements.
For example, a device used on a container traveling through multiple countries may require different communication and battery strategies from a device used on short domestic transit movements. A tanker application may require a different physical installation method from a container-door application. A reusable electronic lock used thousands of times may require a different lifecycle-management strategy from a lower-frequency device.
Before procurement, Customs should therefore define:
Cargo type → Transport mode → Transit duration → Route environment → Security risks → Required events → Response workflow → Evidence requirements
Only after this operational model is clear should device selection begin.
The first responsibility of an electronic seal is still physical cargo security.
Customs should examine how the device is installed, how the sealing mechanism interacts with the container, truck or cargo compartment, and what happens when someone attempts to remove, cut, bypass or manipulate it.
The important question is not simply whether the device is described as “tamper-resistant.”
Customs should ask:
What constitutes a tamper event?
How is that event detected?
How quickly is it reported?
Is the event stored locally if communications are unavailable?
Can the system distinguish normal authorized operations from abnormal manipulation?
Can the event later be reconstructed as part of the cargo journey?
A security event that cannot be reliably recorded, transmitted and interpreted provides limited operational value.
This is why physical security and digital event management should be evaluated together.
Real-time or near-real-time location is one of the fundamental capabilities of an ECTS field device.
But Customs should look beyond the statement “GPS supported.”
Positioning performance needs to be evaluated within the actual operating environment. Transit routes may include ports, container yards, urban areas, remote corridors, mountainous regions, border zones and locations where satellite or cellular conditions are inconsistent.
The system should provide sufficient positioning quality to support operational requirements such as route compliance, geofencing, border-crossing verification and incident investigation.
Location data also needs context.
A coordinate by itself tells Customs where a device reported its position. The ECTS platform should be able to relate that position to an approved route, authorized stop, Customs checkpoint, geofence or other operational rule.
This is how raw positioning becomes Customs supervision information.
One of the most important real-world ECTS questions is also one of the easiest to overlook during procurement:
What happens when the device loses communication?
National and cross-border trade corridors do not always provide uninterrupted mobile coverage. Devices may pass through remote areas, network transitions or temporary communication gaps.
A robust ECTS design should therefore not assume permanent connectivity.
Customs should evaluate whether the device can store important records locally, maintain correct event timestamps, preserve the sequence of events and transmit historical data after connectivity is restored.
The distinction is important:
Communication interruption should not automatically become evidence interruption.
The platform should also distinguish between a normal temporary connectivity issue and a pattern that may itself require attention.
For cross-border operations, additional questions arise around roaming, network compatibility, SIM/eSIM strategy, communication cost, carrier redundancy and service availability across jurisdictions.
Battery specifications are often compared as simple numbers.
In practice, battery performance depends heavily on how the ECTS operates.
Positioning frequency, communication frequency, sensor activity, temperature, network conditions, event volume and device power-management strategy can all influence operating duration.
Customs should therefore avoid evaluating battery life only under ideal laboratory conditions.
The better question is:
Can the device reliably complete the intended operational cycle under the project's actual reporting and environmental conditions?
This includes not only the transit journey itself, but also device preparation, waiting time, return logistics, charging, storage and redeployment.
For reusable devices, charging operations and battery health can become significant parts of the national ECTS operating model.
Battery management is therefore not simply a device specification.
At scale, it becomes a fleet operations issue.
A sophisticated ECTS should understand not only whether a seal was opened, but also whether the opening occurred under authorized conditions.
This is where geofencing and authorization workflows become important.
For example, Customs may define authorized inspection zones, inland terminals, border facilities or destination locations where opening is permitted.
The system can then evaluate multiple conditions:
Is the device inside the authorized geofence?
Has the appropriate officer or system authorized the action?
Did the opening occur within the expected time window?
Was the event correctly recorded?
Was the cargo subsequently secured again?
This creates richer operational context than a simple binary “open/closed” status.
An opening event does not automatically mean a violation.
An unexplained opening event is fundamentally different from an authorized Customs inspection.
The ECTS architecture should be capable of preserving that distinction.

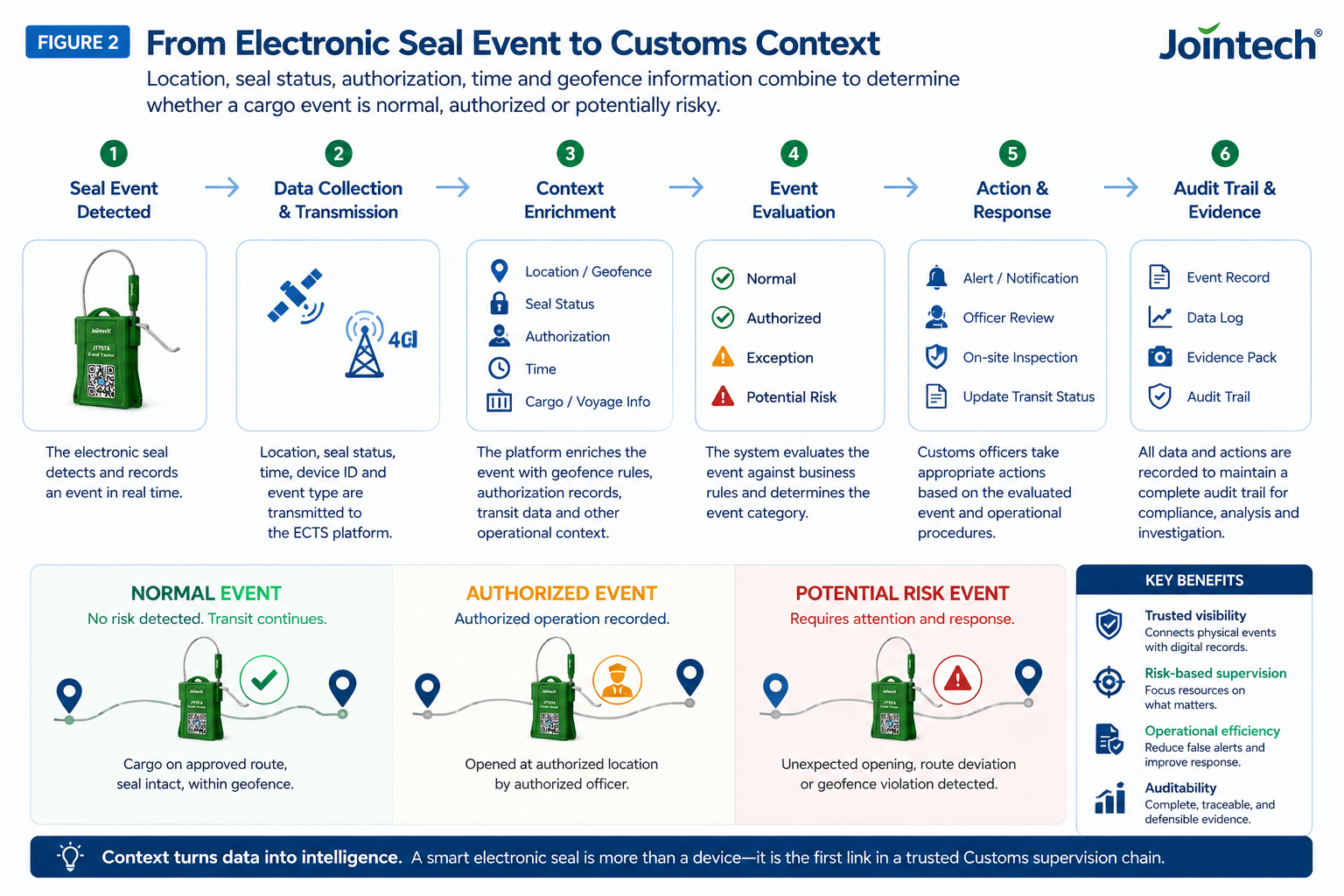

Figure 2. From Electronic Seal Event to Customs Context
Location, seal status, authorization, time and geofence information combine to determine whether a cargo event is normal, authorized or potentially risky.
ECTS devices operate in physical environments that are very different from office IT systems.
They may experience rain, dust, heat, cold, vibration, repeated handling, port operations, long road journeys and frequent installation and removal.
Environmental durability should therefore be evaluated against the actual deployment environment.
Relevant considerations may include enclosure protection, operating temperature, vibration resistance, mechanical strength, connector protection and resistance to repeated field use.
But specifications alone are not enough.
Pilot testing should reproduce realistic operating conditions wherever possible.
A device that performs well during a demonstration may behave differently after months of repeated installation, charging, transport and exposure to harsh environments.
For national ECTS projects, reliability should be evaluated over the device lifecycle, not just at the moment of procurement.
A smart electronic seal is a connected endpoint within a larger Customs digital infrastructure.
That makes cybersecurity part of the selection process.
Customs should consider how devices authenticate themselves to the platform, how commands are authorized, how communications are protected, how firmware is managed and how unauthorized access is prevented.
Remote unlocking deserves particular attention.
If a device supports remote control, the system should have clear authorization policies, role management and audit records defining who can issue commands and under what conditions.
Device identity also matters.
The ECTS should be able to associate a specific physical device with the correct cargo movement and maintain that relationship throughout the supervised journey.
In other words, Customs should not only ask:
“Can this device communicate?”
It should ask:
“Can we trust the identity, commands and data associated with this device?”
A Customs supervision system needs more than real-time alerts.
It also needs a reliable historical record.
When an incident is reviewed later, Customs may need to reconstruct the journey: route history, seal events, communications, authorized actions, device status and other relevant records.
The smart electronic seal should therefore support the broader auditability requirements of the ECTS.
Key events should carry consistent timestamps and device identity and remain connected to the relevant transit movement.
This becomes increasingly important as Customs moves toward more data-driven risk management.
An alert tells an officer that something may require attention.
An auditable event history helps explain why.
That distinction becomes even more important when data may later support investigation, compliance review or post-clearance analysis.
A smart electronic seal should never be evaluated as an isolated device.
It exists inside a larger system.
The device layer may need to connect with an ECTS platform, and the ECTS itself may need to exchange information with Customs declaration systems, transit systems, risk-management platforms, border systems, ports, terminals or other government infrastructure.
This makes interoperability a key selection criterion.
Customs should evaluate whether the device and platform architecture can support structured data exchange, APIs, event synchronization, device management and integration with existing workflows.
A national ECTS should avoid creating another isolated data silo.
The objective should be to connect physical cargo events with the digital Customs environment.
The relationship can be summarized as:
Smart Electronic Seal
↓
Connectivity
↓
ECTS Platform
↓
Customs Systems
↓
Risk Management
↓
Customs Decision & Action
The field device is therefore one component of a much larger supervision architecture.

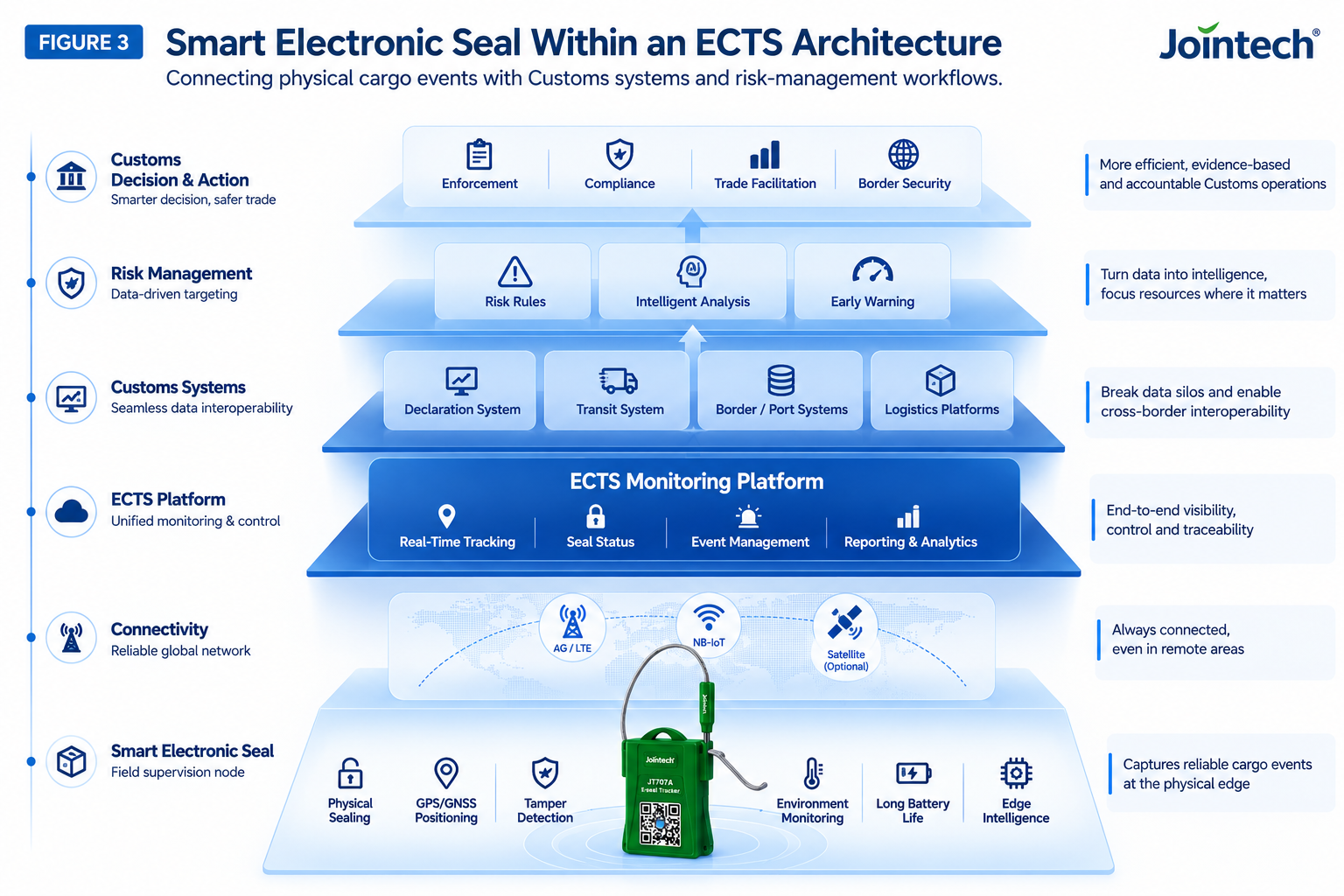

Figure 3. Smart Electronic Seal Within an ECTS Architecture
The electronic seal acts as a field supervision node connecting physical cargo events with the ECTS platform, Customs systems and risk-management workflows.
A pilot may involve dozens or hundreds of devices.
A national system can involve a much larger operational fleet.
This changes the implementation challenge.
Customs and ECTS operators need to know which devices are active, available, charging, under maintenance, offline, assigned to journeys or approaching service requirements.
At scale, device lifecycle management may include inventory control, assignment, charging, firmware updates, maintenance, repair, replacement, return logistics and performance monitoring.
The question therefore changes from:
“Does the device work?”
to:
“Can thousands of devices be operated reliably as one managed supervision network?”
This is one of the reasons Customs should evaluate not only device specifications but also the supplier's platform, operational tools and large-scale deployment capability.
There may be no single device design that is optimal for every Customs transit scenario.
Containerized cargo may favor devices designed around container-door structures. Trucks and trailers may require different installation mechanisms. Tankers or specialized vehicles may create additional sealing requirements. Some operations may prioritize long battery life, while others may prioritize rapid reuse or remote authorization.
A national ECTS architecture should therefore be capable of supporting a device ecosystem rather than assuming every cargo movement must use exactly the same form factor.
What should remain consistent is the supervision logic:
Identify → Seal → Track → Detect → Verify → Respond → Record
This allows different field technologies to participate in one common Customs supervision framework.
Technical specifications should be validated in the field.
Before national rollout, Customs should conduct structured pilot testing across representative routes, cargo types, communication conditions and operational workflows.
The pilot should evaluate more than GPS accuracy or battery life.
It should test the complete operational chain:
Device installation → Journey activation → Position reporting → Event detection → Alert transmission → Control-center review → Authorized intervention → Journey closure → Device recovery
Pilot KPIs may include device availability, communication success, location quality, battery performance, event detection accuracy, false-alert rate, response time, installation time and device recovery rate.
Most importantly, the pilot should test whether the system produces information that Customs officers can actually use.
A technically successful alert that creates no clear operational response is not yet an effective Customs control mechanism.
Electronic seal procurement should not be evaluated only by device purchase price.
For reusable devices, the total cost of ownership may include communications, charging, maintenance, accessories, installation, repair, device loss, software, integration, platform operations, replacement and lifecycle management.
Reliability also has a cost dimension.
A lower-cost device that requires frequent maintenance, produces false alerts or has a short operational life may ultimately cost more to operate than a more reliable alternative.
Customs should therefore evaluate:
Device cost + Connectivity + Platform + Operations + Maintenance + Integration + Lifecycle + Replacement
The objective is not to select the cheapest electronic seal.
It is to select a technology and operating model that can deliver sustainable supervision at the required scale.
Before selecting smart electronic seals for an ECTS project, Customs authorities can organize evaluation around six dimensions.
Evaluation Area | Key Question |
Security | Can the device reliably detect and record unauthorized access or tampering? |
Visibility | Can it provide sufficient positioning and movement information for the supervision scenario? |
Connectivity | Can it preserve critical records during communication gaps and recover correctly afterward? |
Operations | Can officers and operators install, authorize, recover, charge and manage the device efficiently? |
Integration | Can device events integrate with the ECTS platform and existing Customs systems? |
Scalability | Can the device fleet be managed reliably from pilot scale to national deployment? |
The weighting of these dimensions will vary by country and project.
That is why a good electronic seal selection process should begin with Customs operational requirements, not a generic hardware checklist.
The role of the field device is also evolving.
The first generation of electronic cargo devices primarily improved visibility.
The next generation can increasingly combine multiple forms of perception and event information.
This creates an evolution from:
Tracking Node
→ Security Node
→ Sensing Node
→ Evidence Node
→ Intelligent Cargo Node
As positioning, electronic sealing, sensors, edge computing and AI-enabled perception become more integrated, the field device can contribute richer information about what is happening to cargo during transit.
But the objective should not be to add technology for its own sake.
Every additional sensor or intelligence capability should answer an operational Customs question.
Does it improve risk detection?
Does it reduce uncertainty?
Does it provide better evidence?
Does it enable a faster or more proportionate response?
This is the standard against which intelligent field technology should be evaluated.
Figure 4. From Electronic Seal to Intelligent Cargo Node
The evolution of Customs field technology moves from location tracking and electronic sealing toward sensing, trusted evidence and cargo intelligence.
A smart electronic seal can provide valuable information about cargo location and security, but it cannot create an effective ECTS by itself.
Reliable Customs supervision depends on the entire chain:
Field Device → Connectivity → Platform → Integration → Risk Rules → Operational Workflow → Customs Response
Weakness at any layer can reduce the effectiveness of the layers above it.
A highly capable electronic seal connected to a poorly designed alert workflow may generate information that no one acts upon. A sophisticated ECTS platform cannot compensate indefinitely for unreliable field data. And an effective risk engine still requires Customs procedures defining who is responsible for responding to an event.
This is why smart electronic seal selection should always take place within the architecture of the broader ECTS implementation.
For Customs authorities, selecting a smart electronic seal is not simply a question of comparing GPS accuracy, battery capacity or communication protocols.
The more important question is:
Can this device reliably support the Customs supervision mission throughout the complete cargo journey?
That requires looking at physical security, positioning, communications, offline continuity, battery performance, geofencing, authorization, cybersecurity, event integrity, platform integration, lifecycle management and scalability as parts of one system.
The strongest device is not necessarily the device with the longest specification sheet.
It is the device that can consistently generate the right information, at the right time, in the right operational context, while integrating with the broader Customs ECTS.
For a pilot, this determines whether the technology works.
For a national ECTS, it determines whether the technology can be trusted at scale.
And as Customs systems increasingly move from cargo tracking toward risk intelligence, that reliability becomes even more important.
Because every intelligent Customs decision ultimately begins somewhere in the physical world—with a cargo event that must first be detected, recorded and understood.
The future is therefore not simply about smarter electronic seals.
It is about building a more trusted connection between cargo, evidence and Customs decisions.
A smart electronic seal is an IoT-enabled cargo security device that combines physical sealing with digital capabilities such as positioning, communication, tamper detection and event monitoring. Within an ECTS, it helps Customs supervise cargo while it moves outside fixed checkpoints.
A GPS tracker primarily provides location and movement information. A smart electronic seal can additionally connect location with the physical security status of cargo, including opening or tamper events and, depending on the system, authorization workflows.
No. A smart electronic seal is a field device within an ECTS. A complete Electronic Cargo Tracking System can also include communications, a monitoring platform, Customs-system integration, risk rules, control-center operations, reporting and operational procedures.
A GPS electronic seal generally combines electronic cargo sealing with GPS/GNSS positioning and wireless communications, allowing the system to monitor both cargo security status and location during transit.
Electronic navigation seal is terminology used in some regional regulatory environments for connected sealing devices used to monitor cargo movement. Exact regulatory and technical definitions can vary by jurisdiction, so Customs projects should follow the applicable local framework rather than assume all electronic seal terms are interchangeable.
Key considerations include physical security, tamper detection, GPS/GNSS performance, communications, offline data preservation, battery life, environmental durability, cybersecurity, authorization workflows, ECTS integration, device lifecycle management and scalability.
Yes, when integrated into an appropriate ECTS architecture. Location, seal status and other device events can contribute to risk rules and alert workflows, but effective risk-based supervision also requires context, system integration and clear Customs response procedures.
Pilot testing allows Customs to validate devices, connectivity, operational procedures, platform integration and alert workflows under real transit conditions before scaling to a larger national network.
